Summary
The Tramex-type pressed grating is distinguished by its composition of supporting and separating plates, joined by pressure fitting. Made of hot-dip galvanized steel, it guarantees not only exceptional strength but also long-term durability. Discover the effectiveness of this thermal solution in industrial and building applications.
![](https://insametal.com/wp-content/uploads/2023/11/Logo-Insametal-Gris-Sin-Texto.png)
Summary
The Tramex-type pressed grating is distinguished by its composition of supporting and separating plates, joined by pressure fitting. Made of hot-dip galvanized steel, it guarantees not only exceptional strength but also long-term durability. Discover the effectiveness of this thermal solution in industrial and building applications.
![](https://insametal.com/wp-content/uploads/2023/12/CARACTERISTICAS-PRENSADO-1024x1024.png)
Characteristics
- Pressed grating composed of supporting plates and separating plates.
- Possibility of use in gutters, walkways, stairs, fences, etc.
- Variable module lengths.
- Possibility of matrixing the supporting plates with a toothing.
- Possibility of framing the grilles perimeter with plates with T frames.

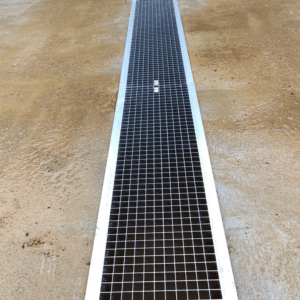

Supported on both sides by L or T profiles welded to the grating itself.
![](https://insametal.com/wp-content/uploads/2023/12/1-BLANCO-150x150.png)
![](https://insametal.com/wp-content/uploads/2023/12/2-NEGRO-150x150.png)
Supported on one side by an L or T profile welded to the grating itself and, on the other side, screwed directly to the concrete.
Supported on one side by an L or T profile welded to the grating itself and, on the other side, supported on a bushing screwed to the concrete.
![](https://insametal.com/wp-content/uploads/2023/12/3-BLANCO-150x150.png)
![](https://insametal.com/wp-content/uploads/2023/12/4-NEGRO-150x150.png)

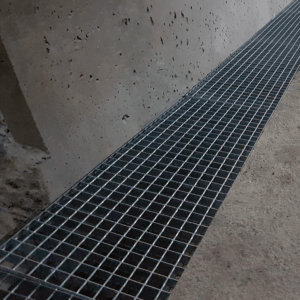

Supported on recesses built in concrete.
Technical Specifications
![](https://insametal.com/wp-content/uploads/2024/04/TABLA-1_PRENSADA-1.png)
![](https://insametal.com/wp-content/uploads/2024/01/PRODUCTO-PIEZA-CANALETA-REL-1-1024x768.png)
![](https://insametal.com/wp-content/uploads/2024/04/TABLA-2_PRENSADA.png)
![Galvanized finish](https://insametal.com/wp-content/uploads/2023/12/IMAGEN-GALVANIZADO-1-480x480.png)
GALVANIZED
UNE-EN ISO 1461
